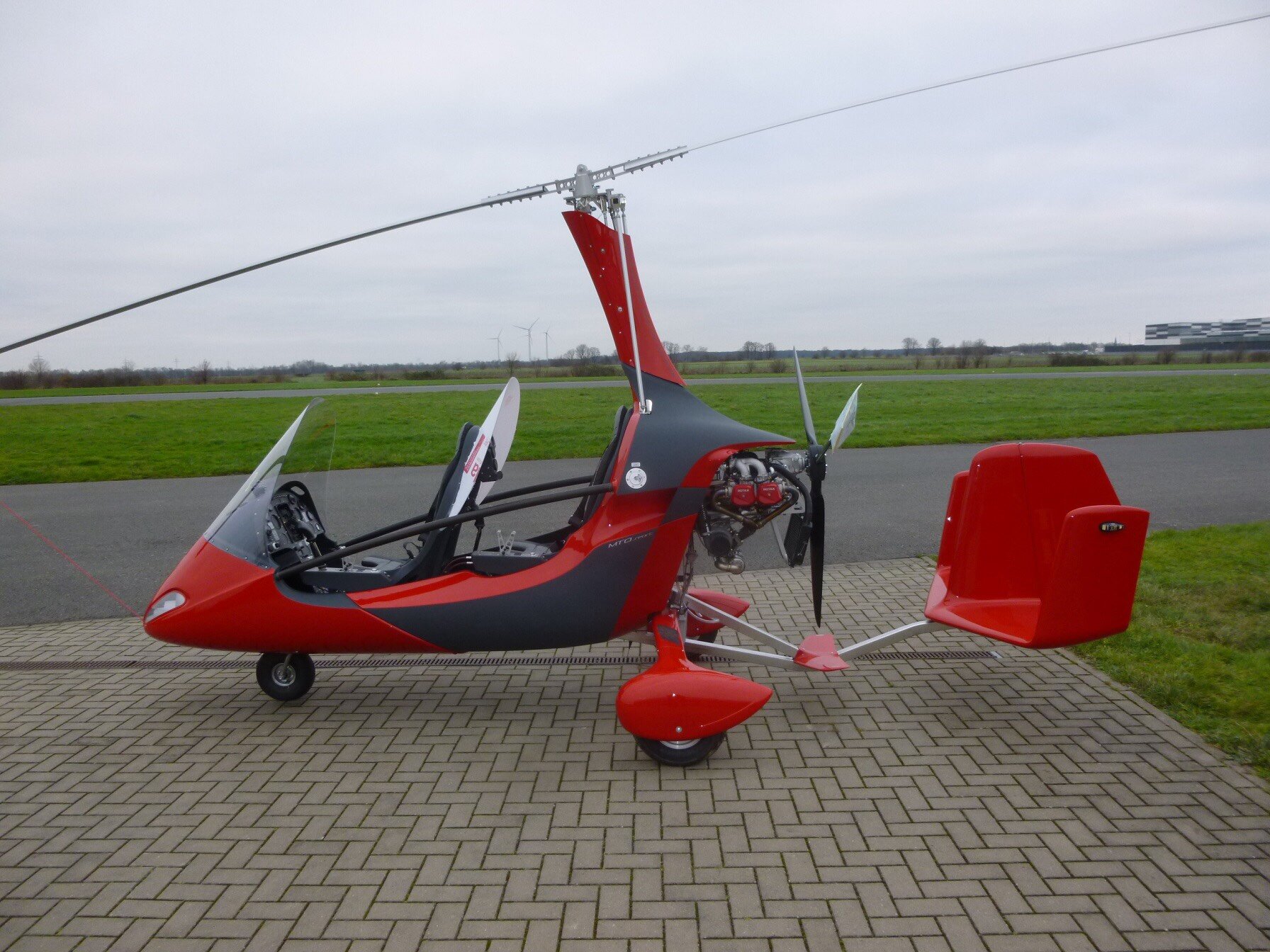

The stalwart of the AutoGyro fleet, revisited. MTO Sport 2017 is the second generation of the enormously successful MTO Sport!
Leaps above the original design, AutoGyro’s latest open cockpit offering provides new levels of comfort, speed, efficiency, and situational awareness.
When optionally powered by the Rotax 915iS, the MTO Sport 2017 has the greatest thrust to weight ratio of the fleet, enabling exhilarating climb rates and superior high density altitude operations.
The new Type Certificated MTO Sport 2017, starting at $98,000*, turnkey and ready to explore in the USA.
* pricing is dependent on current Euro to US Dollar Exchange Rates & subject to change
For a current build quote email fly@autogyronewyork.com
open cockpit
sensational views
The MTO Sport has for many years embodied the feeling of boundless freedom and incomparable excitement. Perfectly evolved and developed, the entire aircraft is new from the ground up. The MTO Sport 2017, bringing together innovation and excellence in design, making it stand out from the crowd like no other. The new MTO Sport 2017 resets the benchmark and raises standards to a new level. It truly is the perfect combination of design, comfort and functionality whilst maintaining its extraordinary individuality and outstanding flight characteristics.
GENERAL SPECIFICATIONS
Seats - Two Tandem
Empty Weight - 650 -670lbs
Max Takeoff Weight - 1234 lbs
Maximum Pilot Weight - 275 lbs
Useful Load - 564 - 584lbs
PERFORMANCE
Max Speed - 121 mph
Cruise Speed - 75-105 mph
Minimum Speed - 25 mph
Range - 358 sm @ 100 mph (+30 minute reserve) - 396 sm @ 90 mph (+30 minute reserve) 421 sm @ 75mph (+30 minute reserve)
Maximum Climb Rate - 936 ft/min (MGTW)
Maximum Demonstrated Altitude - 12,000 feet
Take off Roll (MGTW no wind) - 250 to 400 feet
Landing Roll (no wind) - 60 feet
Maximum Endurance - 6.5 hours + 30 minute reserve
FUEL
Fuel Consumption - 3.5 – 6.0 gallons/ hour
Fuel Type - Premium Automotive
Fuel Tank Capacity - 24.5 gallons
ENGINE
Engine Option - Rotax 915iS / Rotax 912
Horsepower - 141 / 100
Fire Warning System - Yes
AVIONICS
Standard - Analog Flight Instruments, Funkwerk ATR833 VHF Comm Radio, TRIG TT22 Transponder w/ ADS-B Out, Card Compass
Optional - Garmin Flight Deck Suite (G3X 10.6” Touch Display), ELT Kannad AF 406 Emergency Location Transmitter, Rear seat flight instrument package
PRE-ROTATION & ROTORBLADE
Pre-rotation Range - 200-320 RPM
Pre-rotation Engagement - Electronically Initiated, Pneumatically Actuated
Pre-rotation Protection - Yes
Pre-rotation Interruptible - Yes
Pre-rotation From Rear Seat - Yes
Rotor Type - NACA 8H12 extruded aluminum RSII TOPP 8.4m or 8.6m
WARRANTY
Warranty of the Engine - As per Rotax (18 months / 200 hours)
Warranty of Airframe - 200 hours / 12 months
DIMENSIONS
Length - 17 feet 1 inches
Height - 9 feet 0 inches
Width - 6 feet 2 inches
Rotor Diameter - 27 feet 7 inches / 28 feet 3 inches
Airframe Construction Material - Composite / 4130 Chromoly Steel
Hull - Composite Monocoque
Tail - Carbon Fiber
Propeller Material - Composite
Power Outlet Voltage - 12 volt
Nav/Strobe/Recognition Lights - Yes
High Intensity Landing Light - Optional
media
support
Flight Manuals
Flight manuals are available upon request.
Financing
Interested in purchasing an aircraft but need some assistance with the payment? Check out LightStream. They offer excellent rates for an unsecured loan as well as an online approval process that is fast, easy and virtually paperless.
Insurance
Are these aircraft insurable? Yes, they are. Insurance rates will vary depending on the pilot's experience, model etc. We recommend that you contact our insurance broker:
Aviation Insurance Resources
Victoria Neuville
P.O. Box 32
Frederick, MD 21705
T. (301) 682-6200
F. (301) 682-9793
vneuville@air-pros.com
Maintenance
All maintenance is done by AutoGyro New York’s exclusive training and service center Gyro Revolution. Looking for the 25/100 Hour Inspection Protocol Checklists, Ground Test Run Info or Maintenance Manuals for your AutoGyro aircraft?
Please contact AutoGyro New York via phone or email to be sure you have a current copy of this information.
